Driver-side SAM control unit with fuse and relay module, location/task/design - GF54.21-P-4109SK: Notes

MODEL 171.4

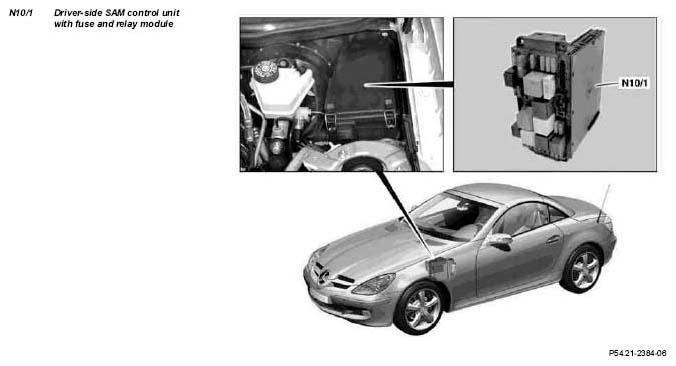

Fig 1: Identifying Driver-Side SAM Control Unit With Fuse And Relay Module Location
G05027820Courtesy of MERCEDES-BENZ USA
Driver-side SAM control unit with fuse and relay module, location The driver-side SAM control unit with fuse and relay module (N10/1) is located in the left front control unit box in the engine compartment.
Driver-side SAM control unit with fuse and relay module, task   GF54.21-P-4109-01SK
Driver-side SAM control unit with fuse and relay module, design The control unit and the sockets for fuses and relays is integrated in the housing of the driver-side SAM control unit with fuse and relay module (N10/1).
