Removing/installing air cleaner housing (engine 113) - AR09.10-P-1150AC
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2011 Mercedes-Benz SLK350, 2011 Mercedes-Benz SLK300, 2010 Mercedes-Benz SLK55, 2010 Mercedes-Benz SLK350, and 2010 Mercedes-Benz SLK300. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.989 in MODEL 171.473
| Danger! | Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. |

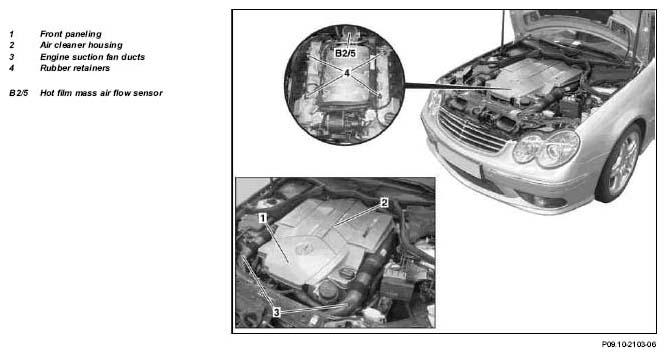

| 1 | Open engine hood | |
| 2 | Remove engine intake air ducts (3) | On left and right. |
| 3 | Remove front trim (1) | |
| 4 | Lift off air cleaner housing (2) with intake line from engine | Removal: Detach air cleaner housing (2) vertically toward the top from the cylinder head covers. Installation: Slightly moisten the rubber retainers (4) on the cylinder head covers and the sealing ring of the hot film mass air flow sensor (B2/5) in the air cleaner housing (2) with sliding compound. Lubricant |
| 5 | Install in reverse order |
