Remove, install rear rubber mount of rear axle center assembly suspension - AR35.10-P-0050-02P

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Extraction And Installation Tool (210 589 02 43 00)

Remove rubber mounts

Measure and note down press-in depth of inner core of both rubber mounts (62) to rear axle crossmember from front using depth gauge.

Fig 2: Identifying Rubber Mounts
Use sleeve, Component 15 (062l), thrust plate, Component 16 (062q) and bolt (116 mm in length) to press both rubber bushings forward for removal from the transverse differential support bracket.

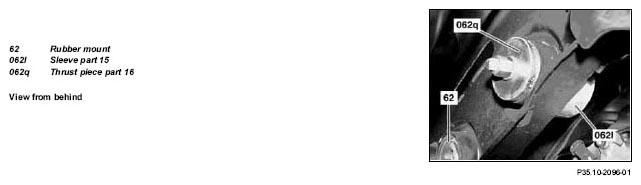

Fig 3: Identifying Rubber Mount, Sleeve Part And Thrust Piece Part

Install rubber mount

Working from the front, position the rubber bushing (62) on the transverse differential support bracket with the end cover on the final-drive unit toward the front.
Front view

Fig 4: Identifying Rubber Bushing
Use insertion tool, component 07 (062p), sleeve, component 15 (062l) and bolt (116 mm in length) with nut to pull both rubber bushings (62) into the transverse differential support bracket, continuing until you obtain the previously measured insertion depth.

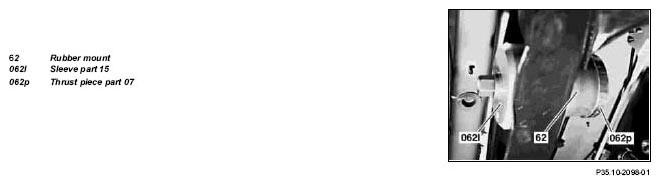

Fig 5: Identifying Rubber Mount, Sleeve Part And Thrust Piece Part
Check insertion depth of the rubber bushings (62) and correct as required.
Repeat step 3 if the insertion depth is incorrect.

Fig 6: Identifying Rubber Busings
