Remove/install fuel pump relay - AR07.52-P-5793V
ENGINE 113.989, 271, 272 in MODEL 171
| Remove/Install | |
|---|---|
| 1 | Open luggage compartment |

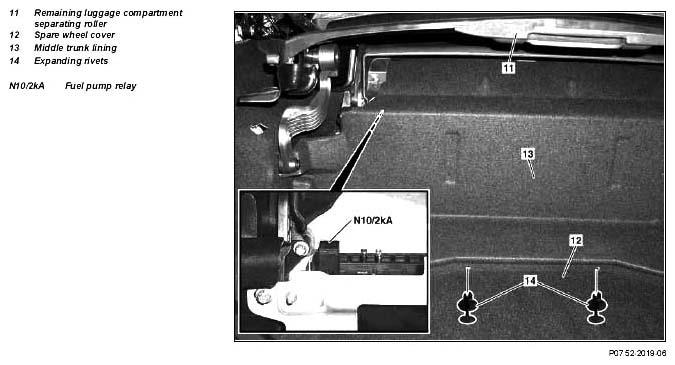

| 2 | Fold remaining luggage compartment separating roller (11) upwards |
| 3 | Take out spare wheel cover (12) |
| 4 | Remove the expansion rivets (14) and take out the middle trunk lining (13) starting from below |
| 5 | Pull out the fuel pump relay (N10/2kA) |
| 6 | Install in the reverse order |
