Install outer rear wheelhouse - AR63.10-P-0670-06VA
TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS
| Number | Designation | Model 171 | |||
|---|---|---|---|---|---|
| BE60.00-P-1002-01L | Gap dimension | Front door to rear fender | Dimension "P" | mm | 3.0+0.8 |
| For figure, see | AR60.00-P-0700-01V | ||||
| BE60.00-P-1003-01L | Gap dimension | Trunk lid to rear fender | Dimension "F" | mm | 3.5+1.5 |
| Trunk lid to taillamp | Dimension "M" | mm | 4.0 (+1.6/-0.5) | ||
| Trunk lid to bumper | Dimension "V" | mm | 5.0 (+1.5/-1.0) | ||
| Rear fender to taillamp | Dimension "U" | mm | 2.5 ± 0.5 | ||
| Trunk lid tip to rear fender | Dimension "E" | mm | 5.0 (+1.5) | ||
| For figure, see | AR60.00-P-0700-01V | ||||
| BE60.00-P-1005-01L | Gap dimension | Fuel filler flap | Dimension "K" | mm | 3.0 ± 0.5 |
| For figure, see | AR60.00-P-0700-01V | ||||
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
- Install rear wheelhouse with rear fender, fit and fasten with
clamping pliers.
- Check and adjust gaps: Trunk lid to taillamp (M) Front door to rear fender (P) Trunk lid to rear fender (F) Rear fender to taillamp (U) Fuel filler flap (K).
Use feeler gauge.
- Remove rear fender.

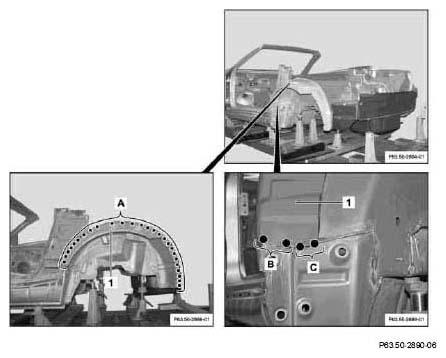

- Weld in on rear wheelhouse (1) with
(areas A, B and C).
