Install outer rear wheelhouse - AR63.10-P-0670-06V
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 171 | |||
|---|---|---|---|---|---|
| BE60.00-P-1002-01L | Gap dimension | Front door to rear fender | Dimension "P" | mm | 3.0 (+0.8) |
| For figure, see | AR60.00-P-0700-01V | ||||
| BE60.00-P-1003-01L | Gap dimension | Trunk lid to rear fender | Dimension "F" | mm | 3.5 (+1.5) |
| Trunk lid to taillamp | Dimension "M" | mm | 4.0 (+1.6/-0.5) | ||
| Trunk lid to bumper | Dimension "V" | mm | 5.0 (+1.5/-1.0) | ||
| Rear fender to taillamp | Dimension "U" | mm | 2.5 (± 0.5) | ||
| Trunk lid tip to rear fender | Dimension "E" | mm | 5.0 (+1.5) | ||
| For figure, see | AR60.00-P-0700-01V | ||||
| BE60.00-P-1004-01L | Gap dimension | Fuel filler flap | Dimension "K" | mm | 3.0 (± 0.5) |
| For figure, see | AR60.00-P-0700-01V | ||||
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1031-02A | C-clamp |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
| WE58.40-Z-1001-05A | Two-post lifting platform |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
- Install outer rear wheelhouse, rear fender, tubular frame, trunk lid, taillamps, rubber seal, striker eye and fit
- Check and adjust gaps: Front door to rear fender (P) Trunk lid to rear fender (F) Trunk lid to taillamp (M) Rear fender to taillamp (U) Fuel filler flap (K)
Use feeler gauge.
- Fasten outer rear wheelhouse with clamping pliers
- Remove rear fender, tubular frame, trunk lid, taillamps, rubber seal, striker eye.

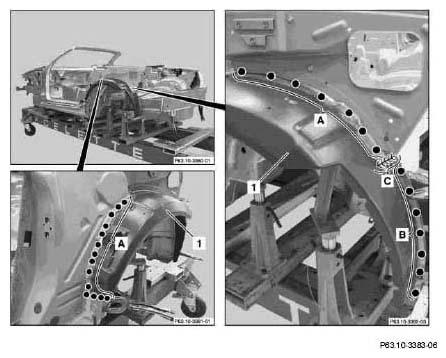

- Weld in outer rear wheelhouse (1) with
(areas A and B).
- Weld in outer rear wheelhouse (1) with
(area C).
