Remove rear outer wheelhouse - AR63.10-P-0660-01VA
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1021-04A | Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 rpm) |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

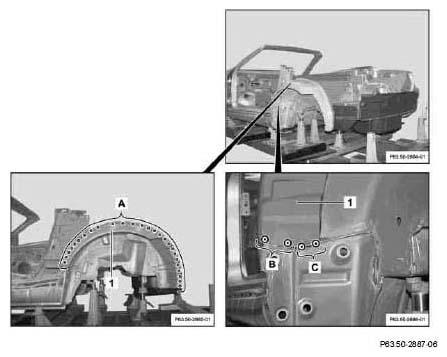

- Expose spot welds on rear wheelhouse (1) (areas A, B and C).
- Cut spot welds out on rear wheelhouse (1) with
spot weld milling cutter (areas A, B and C).
- Sand connection surfaces down to bare metal in shaded areas.
Sand spot weld flanges down to bare metal on both sides.
- Remove grinding and drilling chips with wet/dry vacuum cleaner.
- Coat insides of spot weld flanges with zinc dust paint.
