Tank cover bolt diagram - AR64.20-P-1080-01V
MODIFICATION NOTES
| 13.6.06 | Bolt, tank cover to floor cross member | Model 171 | *BA47.10-P-1010-01B |
FUEL TANK
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA47.10-P-1009-01B | Bolt, upper tank cover to Vario roof cross member | Nm | 6 |
| BA47.10-P-1010-01B | Bolt, tank cover to floor cross member | Nm | 10 |
| BA47.10-P-1011-01B | Nut, tank cover to upper side longitudinal member | Nm | 6 |

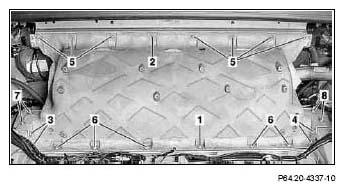

- Tighten bolts and nuts.
Observe tightening pattern (1-8).
