Notes on installing rear wall between passenger compartment and trunk - AH64.20-P-1060-01V
Model 171

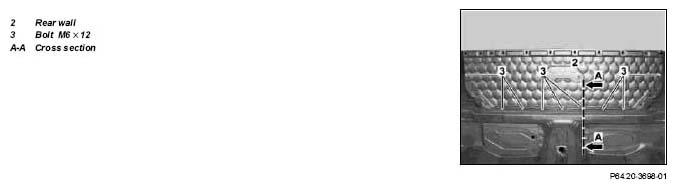

Bolt for rear wall between passenger compartment and trunk
Cross section A-A rear wall between passenger compartment and trunk
When replacing the rear wall (2) ensure that only original bolts M6 x 12 (3) are used.
Fire and explosion hazard
When bolts with a greater shaft length of 12 m are used, the tank (1) can be damaged. This can result in leakage and ignition of the gasoline resulting in fire or explosion.
As illustrated in cross section A-A, the distance (a) between bolt M6 x 12 (3) and the tank (1) is slight. Therefore it is always necessary to use the original M6 x 12 (3) bolts
