Remove/install rear side window - AR67.30-P-4000V

MODEL 171

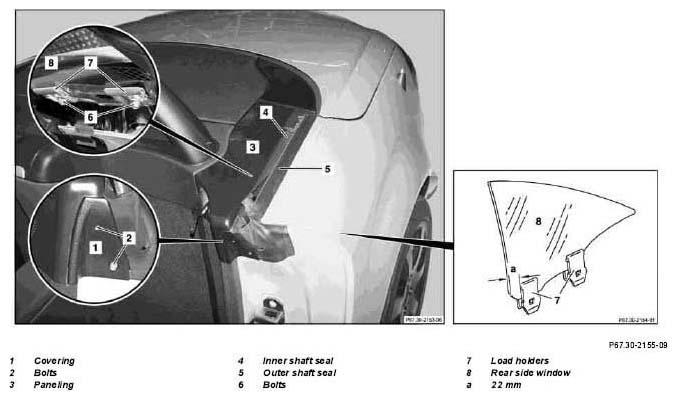

Fig 1: Identifying Rear Side Window Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

9.11.05

Screw, rear side widow to power window

*BA67.30-P-1001-01B

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or  , in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when components are in motion.
1	Open Vario roof	See Owner's manual.
2	Unscrew covering (1)	Bolts (2)
3	Remove paneling (3) from upper center pillar.		AR68.30-P-1077V
4	Remove inner shaft seal (4)
5	Press outer off shaft (5) upward and remove		Fig 2
6	Close Vario roof	See Owner's manual.
7	Loosen bolts (6) of load holders (7) on rear side window (8)		*BA67.30-P-1001-01B
8	Remove rear side window (8) toward front.	Installation:  Dimension "a" between side window front edge and front load holder, approx. 22 mm.
9	Install in the reverse order
10	Adjust rear side windows		AR67.30-P-4200V

SIDE WINDOWS

Number	Designation		Model 171
BA67.30-P-1001-01B	Screw, rear side widow to power window	Nm	5

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
