Remove/install front door infrared remote control receiver - AR80.30-P-4305V
MODEL 171.4 with CODE (880a) Locking system with infrared remote control
Infrared remote control receiver on driver's door
| Remove/Install | ||
|---|---|---|
| 1 | Remove outer door handle guide from driver's door | AR72.10-P-2410V |

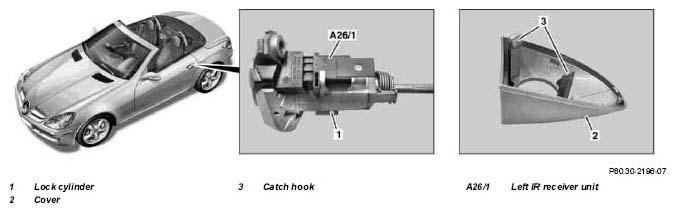

| 2 | Unclip cover (2) from catch hook (3) with suitable screwdriver and remove lock cylinder (1) with left IR receiver (A26/1) | |
| 3 | Install in the reverse order |
