Remove/install CL element fuel filler flap - AR80.20-P-2300V

MODEL 171.4

Fig 1: Identifying CL Element Fuel Filler Flap Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying CL Element Fuel Filler Flap Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Position trunk lid in assembly position.		AR88.50-P-5000-01V
			Fig 3

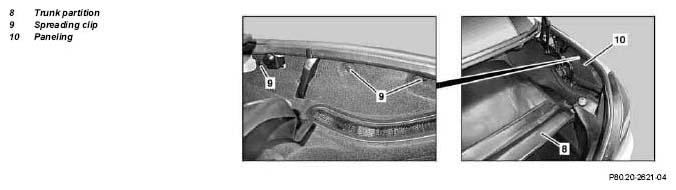

2	Open trunk partition (8)	See Operating Instructions
3	Remove spreading clips (9) and pull paneling (10) back until bolts (1, 3) are accessible

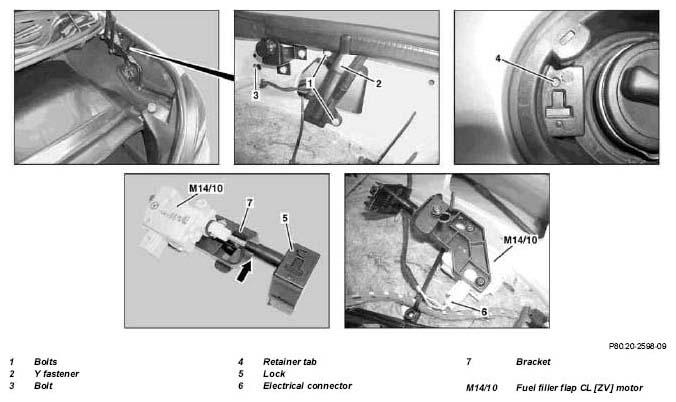

4	Unscrew bolts (1) and remove Y fastener (2)
5	Unscrew bolt (3).
6	Open fuel filler flap
7	Push retainer tab (4) with suitable punch or screwdriver and remove fuel filler flap CL motor (M14/10) toward rear together with lock (5) out of fender	Remove fuel filler flap CL motor (M14/10) carefully. Danger of breaking arrest (arrow) on lock (5)
8	Unplug electrical connector (6)
9.1	Transfer lock (6) and bracket (7) on fuel filler flap CL motor (M14/10)	When replacing fuel filler flap CL motor (M14/10). Handle lock (5) and bracket (7) carefully. Danger of breaking arrest (arrow) on lock (5).
10	Install in the reverse order
