Remove/install throttle valve actuator - AR07.61-P-1401QK

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 271.940 in MODELS 203.042 /242 /742, 209.342 /442

ENGINE 271.941 in MODELS 211.042 /242

ENGINE 271.946 in MODELS 203.046 /246 /746

ENGINE 271.948 in MODELS 203.040 /240 /740

ENGINE 271.942 in MODELS 203.043 /243 /743, 209.343

ENGINE 271.921 in MODEL 203.730

ENGINE 271.955 in MODELS 209.341 /441

ENGINE 271.956 in MODELS 211.041 /241

Shown on model 209

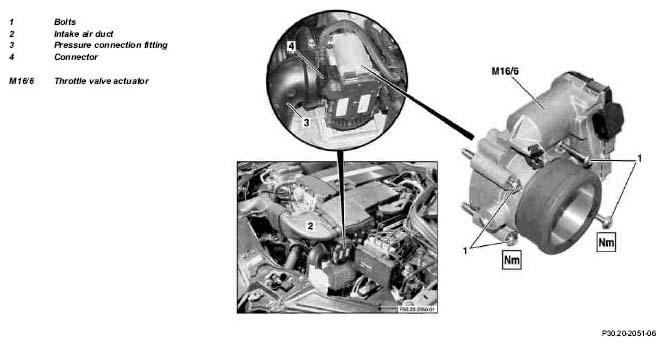

Fig 1: Identifying Intake Air Duct, Pressure Connection Fitting, Connector And Throttle Valve Actuator - Shown On Model 209

MODIFICATION NOTES

16.6.04

Disconnect/connect ground line on battery

	Remove/install
1	Open engine hood	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
2	Remove Intake air line (2)
3.1	Remove pressure connection (3) to throttle valve actuator (M16/6)	Model 203, 209
		Installation: Do not apply grease to openings of the pressure connection (3). The pressure buildup by the compressor would loosen the pressure connection (3) from the throttle valve actuator (M16/6)
3.2	Release pressure connection (3) from throttle valve actuator (M16/6)	Model 211
		Installation: Do not apply grease to the openings of the pressure connection (3). The pressure buildup by the compressor would loosen the pressure connection (3) from the throttle valve actuator (M16/6)
4	Detach vacuum line of purge valve at throttle valve actuator (M16/6)	Model 203, 209
5	Remove plug (4) from throttle valve actuator (M16/6)
6	Remove bolts (1)		*BA30.20-P-1002-01C
7	Remove throttle valve actuator (M16/6)	Installation: Observe leading guides, otherwise leaks may occur.
8	Install in the reverse order
9	Read out fault memory and erase	Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in the fault memories after completing the work.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

ELECTRONIC ACCELERATOR PEDAL ACTUATOR

Number	Designation		Engine 271
BA30.20-P-1002-01C	Bolt, throttle valve actuator to intake manifold	Nm	9

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
