Remove/install camshaft Hall sensor - AR15.10-P-2000QB
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272.920 in MODELS 203.052 /252 /752
ENGINE 272.940 in MODELS 203.054 /254, 209.354 /454
ENGINE 272.960 in MODELS 203.056 /256 /756, 209.356 /456
ENGINE 272.970 in MODELS 203.087 /287
ENGINE 272.941 in MODELS 203.092 /292
ENGINE 273 in MODEL 209
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood and raise to vertical position | Model 203 | AR88.40-P-1000P |
| Model 209 | AR88.40-P-1000Q | ||
| 2 | Remove front engine cover (1) | ||
| 3 | Remove left or right suction fan duct (2) | ||
| 4 | Disconnect plug from respective exhaust camshaft Hall sensor | ||

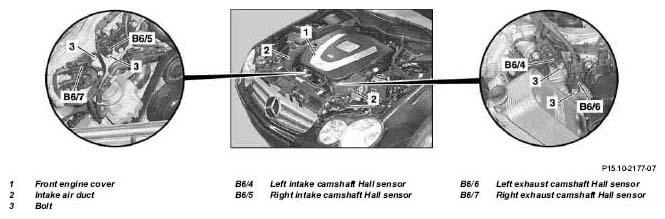

| 5 | Unscrew bolt (3) and pull respective camshaft Hall sensor out of front cover on cylinder head |
||
| *BA15.10-P-1002-03E | |||
| Fig 2 | |||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory | STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Run engine and inspect for oil leaks |
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA15.10-P-1002-03E | Bolt, camshaft Hall sensor to front cover on cylinder head | Nm | 8 | 8 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
