Remove/install alternator - AR15.40-P-5032QK
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 271.940 in MODEL 203.042 /242 /742, 209.342 /442
ENGINE 271.941 in MODEL 211.042 /242
ENGINE 271.946 in MODEL 203.046 /246 /746
ENGINE 271.948 in MODEL 203.040 /240 /740
ENGINE 271.942 in MODEL 203.043 /243 /743, 209.343
ENGINE 271.921 in MODEL 203.730
ENGINE 271.955 in MODEL 209.341 /441
ENGINE 271.956 in MODEL 211.041 /241

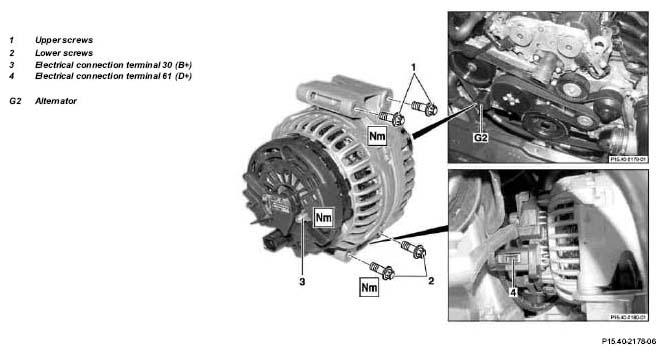

Shown on engine 271.940 in model 209.342
MODIFICATION NOTES
| 17.6.03 | Do not remove alternator downwards, but upwards instead | Step 9 |
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Open engine hood | Model 203 | AR88.40-P-1000P |
| Model 209 | AR88.40-P-1000Q | ||
| Model 211 | AR88.40-P-1000T | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged leadacid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect ground cable from battery | Model 203 | AR54.10-P-0003P |
| Model 209 | AR54.10-P-0003Q | ||
| Model 211.0 | AR54.10-P-0003T | ||
| Model 211.2 | AR54.10-P-0003TA | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| 3 | Remove the intake air crossover to the air filter | ||
| 4 | Remove poly-V-belt | AR13.22-P-1202QK | |
| 5 | Remove line on electric connection for circuit 30 (B+) (3) | *BA15.40-P-1002-01F | |
| 6 | Unscrew the upper bolts (1) of alternator (G2) | *BA15.40-P-1001-01F | |
| 7 | Remove engine compartment paneling | Models 203, 209 | AR61.20-P-1105P |
| Model 211 | AR61.20-P-1105T | ||
| 8 | Remove line on electric connection for circuit 61 (B+) (4) | ||
| 9 | Unscrew the lower bolts (2) of alternator (G2) | *BA15.40-P-1001-01F | |
| 10 | Take alternator (G2) down and out | ||
| 11 | Install in the reverse order |
| Number | Designation | Engine 271 | |
|---|---|---|---|
| BA15.40-P-1001-01F | Bolt, alternator to timing case | Nm | 20 |
| BA15.40-P-1002-01F | Nut, circuit B+ to alternator | Nm | 15 |
