Remove, install the resonance intake manifold - AR09.20-P-1961QB

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272.920 in MODELS 203.052 /252 /752

ENGINE 272.940 in MODELS 203.054 /254, 209.354 /454

ENGINE 272.960 in MODELS 203.056 /256 /756, 209.356 /456

ENGINE 272.970 in MODELS 203.087 /287

ENGINE 272.941 in MODELS 203.092 /292

ENGINE 273 in MODEL 209

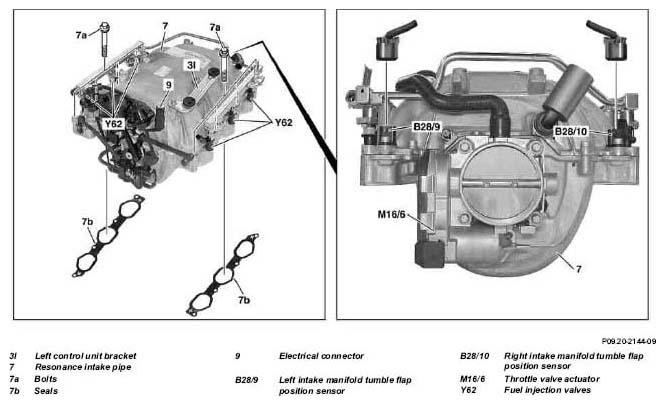

Fig 1: Identifying Resonance Intake Manifold Remove/Install Components (1 Of 2)
G04732123

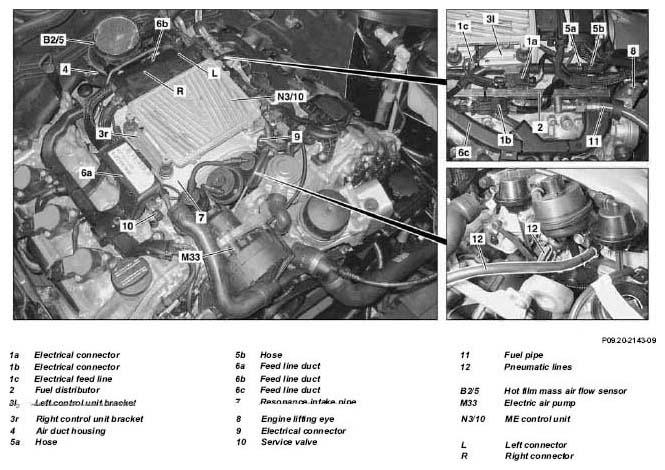

Fig 2: Identifying Resonance Intake Manifold Remove/Install Components (2 Of 2)
G04732124
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning  caused by inhaling and swallowing fuel and risk of injury  to eyes and skin caused by contact with fuel. No fire, sparks, open flames or smoking.
Only pour fuels into suitable and appropriately marked containers.
AS47.00-Z-0001-01A
    Wear protective clothing when handling fuel.
NOTES Notes on avoiding damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
1 Turn key in ignition switch to position "0".
2 Open engine hood and raise to vertical position Model 203 AR88.40-P-1000P
    Model 209 AR88.40-P-1000Q
3 Remove air filter housing   AR09.10-P-1150QB
4 Remove the right connector (R) at the ME-SFI [ME] control unit (N3/10)
5 Disconnect electrical connectors (1a, 1b)
6 Remove jack for electrical connector (1b) on fuel distributor (2) IMPORTANTInstallation:  Install new tie straps.
7 Remove electrical feed line (1c) from left control unit holder (3l) IMPORTANTInstallation:  Install new tie straps.
8 Detach ME control unit (N3/10) from left control unit holder (3l) and right control unit holder (3r) and lay to one side IMPORTANT Do not  remove the left connector (L) at the ME-SFI [ME] control unit (N3/10).
9 Remove hot film mass air flow sensor (B2/5)   AR07.07-P-1453QB
10 Remove air guide housing (4)   AR09.20-P-0080QB
11 Disconnect hoses (5a, 5b) from crankcase ventilation system
12 Remove the right control unit holder (3r) TORQUE SPECIFICATION *BA07.08-P-1002-01A
13 Remove feed line duct (6a) from cylinder head cover and resonance intake manifold (7) TORQUE SPECIFICATION *BA15.18-P-1001-01B
    TORQUE SPECIFICATION *BA15.18-P-1002-01B
14 Remove feed duct (6b) from resonance intake manifold (7) TORQUE SPECIFICATION *BA15.18-P-1001-01B
15 Remove the left rear motor suspension lug (8) TORQUE SPECIFICATION *BA01.30-P-1005-01O
    TORQUE SPECIFICATION *BA15.18-P-1003-01B
16 Remove feed line duct (6c) from cylinder head cover TORQUE SPECIFICATION *BA15.18-P-1002-01B
17 Release and disconnect the electrical connectors at the fuel injection valves (Y62)
18 Release and disconnect the electrical connectors on the left intake manifold tumble flap position sensor (B28/9) and right intake manifold tumble flap position sensor (B28/10)
19 Disconnect electrical connector (9).
20 Release and disconnect electrical connector at throttle valve actuator (M16/6)
21 Disconnect electrical connector at electric air pump (M33)
22 Reduce fuel pressure with pressure hose via service valve (10)   AR07.03-P-1460-01VA
    SPECIAL TOOL Figure
23 Disconnect fuel line (11) from fuel distributor (2) IMPORTANT Seal connections immediately with stop plugs SPECIAL TOOL .
    SPECIAL TOOL Fig 3
    TORQUE SPECIFICATION *BA07.03-P-1001-01B
24 Remove bolts (7a) TORQUE SPECIFICATION *BA09.20-P-1001-01N
25 Lift the resonance intake manifold (7) to front and detach pneumatic lines (12) from connection fittings at resonance intake manifold (7)
26 Take out the resonance intake manifold (7) IMPORTANTInstallation:  Replace gaskets (7b).
27 Cover the openings in the cylinder heads NOTESInstallation:  Objects that have entered the intake tract must always be removed before fitting the resonance intake manifold (7); otherwise there may be engine damage.
  Only perform work steps 28 to 31 when replacing the resonance intake manifold
28 Detach left control unit holder (3l) from resonance intake manifold (7) TORQUE SPECIFICATION *BA07.08-P-1002-01A
29 Detach the fuel distributor (2) with the fuel injection valves (Y62) from the resonance intake manifold (7) TORQUE SPECIFICATION *BA07.03-P-1002-01B
30 Detach the throttle valve actuator (M16/6) from the resonance intake manifold (7) TORQUE SPECIFICATION *BA07.61-P-1001-01D
31 Remove left intake manifold tumble flap position sensor (B28/9) and right intake manifold tumble flap position sensor (B28/10) from resonance intake pipe (7)
32 Install in the reverse order
INSPECT Checking
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the running engine Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not grasp hot or rotating parts.
AS00.00-Z-0005-01A
33 Carry out an engine test run and check the intake tract and fuel system for leaks
TORQUE SPECIFICATION CONTROL UNIT

Number Designation Engine 272 Engine 273
BA07.08-P-1002-01A Bolt, control unit holder to resonance intake manifold Nm 8 8
TORQUE SPECIFICATION ENGINE WIRING HARNESS

Number Designation Engine 272 Engine 273
BA15.18-P-1001-01B Bolt, feed line duct to resonance intake manifold Nm 8 8
BA15.18-P-1002-01B Bolt connecting feed line duct to cylinder head cover Nm 8 8
BA15.18-P-1003-01B Bolt, feed line duct to motor suspension lug Nm 8 8
TORQUE SPECIFICATION CYLINDER HEAD

Number Designation Engine 272 Engine 273
BA01.30-P-1005-01O Bolt connecting suspension lug to cylinder head M8 Nm 20 20
TORQUE SPECIFICATION INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 272 without code 917 Engine 272 with code 917 Engine 273
BA07.03-P-1001-01B Union nut, fuel feed line to fuel distributor Nm 20 20 20
BA07.03-P-1002-01B Bolt connecting fuel distributor to resonance intake manifold Nm 9 9 9
TORQUE SPECIFICATION INTAKE MANIFOLD

Number Designation Engine 272 Engine 273
BA09.20-P-1001-01N Bolt connecting resonance intake manifold to cylinder head Nm 9 9
TORQUE SPECIFICATION ME GASOLINE INJECTION AND IGNITION SYSTEM

Number Designation Engine 272 Engine 273
BA07.61-P-1001-01D Bolt connecting throttle valve actuator to resonance intake manifold Nm 9 9
Fig 3: Identifying Set Of Stop Plugs (129 589 00 91 00)
G04732125
Fig 4: Identifying Pressure Hose (119 589 04 63 00)
G04732126
