Remove/install paneling in footwell - AR68.30-P-4010V

MODEL 171.4

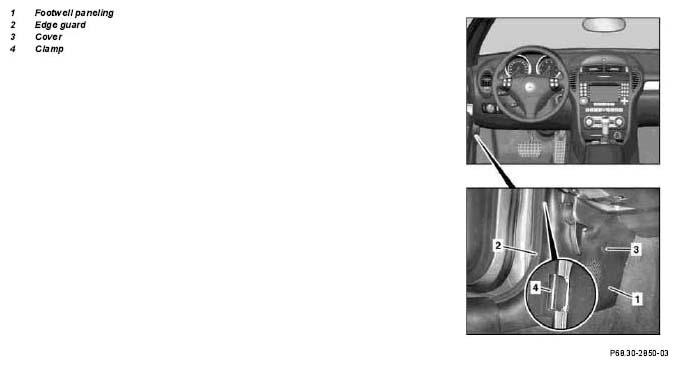

Fig 1: Identifying Paneling In Footwell Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left and right door sill molding		AR68.30-P-4100V
2.1	Remove cover below instrument panel on left	When removing left footwell paneling (1)	AR68.10-P-1500V
2.2	Remove cover below instrument panel on right	When removing right footwell paneling (1)	AR68.10-P-1520V
3	Loosen edge guard (2) on left and right in area of footwell	Installation:  Ensure that edge guard (2) is seated properly.
4	Remove cover (3) and unscrew bolt below
5	Loosen clip (4) with screwdriver
6	Remove left and right footwell paneling (1)
7	Install in the reverse order
