Multifunction steering wheel, networking of components - GF82.90-P-0001-01SK

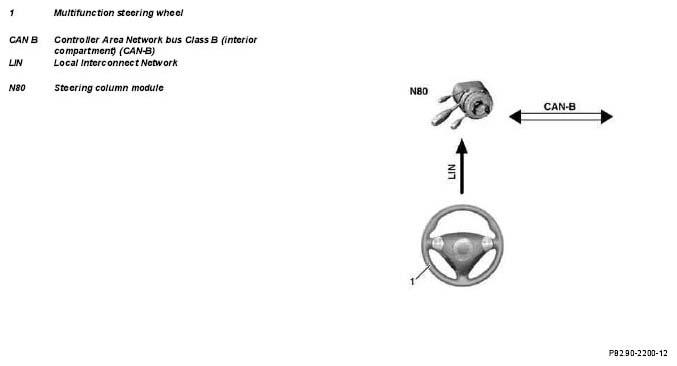

Fig 1: Multifunction Steering Wheel Components Networking Chart

G05030620

Courtesy of MERCEDES-BENZ USA
