Hands-free microphone, location/task - GF82.70-P-4102SK

Model 171.4 with CODE (386) Preinstallation for telephone "Portable CTEL", UPCI system

Model 171.4 with CODE (388) Telephone "Portable CTEL", UPCI system

Model 171.4 with CODE (494) USA version

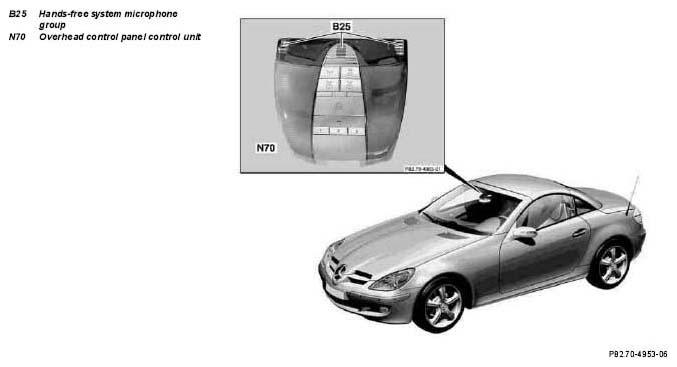

Fig 1: Identifying Hands-Free Microphone Location
G05030601Courtesy of MERCEDES-BENZ USA
Hands-free system microphone, location The hands-free system microphone group (B25) is located in the overhead control panel control unit (N70).
Hands-free system microphone, purpose The hands-free system microphone group (B25) converts the spoken word into electrical signals.
