Entrance and exit lamp, location/task - GF82.20-P-4305SK

MODEL 171.4

Shown on left door

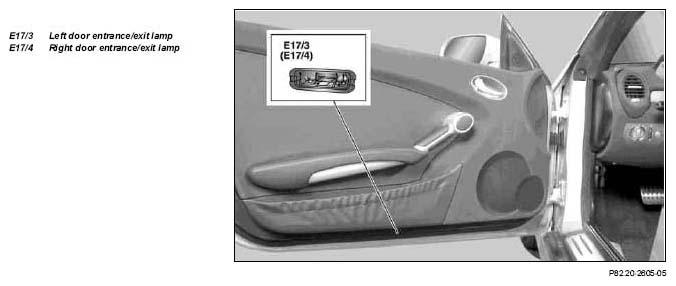

Fig 1: Identifying Entrance And Exit Lamp Location - Shown On Left Door
G05030547Courtesy of MERCEDES-BENZ USA
Entrance and exit lamp, location The entrance and exit lamp for the left door (E17/3) and the entrance and exit lamp for the right door (E17/4) are located in the door panel on each door.
Entrance and exit lamp, task The entrance and exit lamp for the left door (E17/3) and the entrance and exit lamp for the right door (E17/4) are intended to illuminate the entrance/exit area in front of each door.
