Emergency call system loudspeaker, location/task - GF82.95-P-4203SK

MODEL 171.4 with CODE (359) TELE AID emergency call system

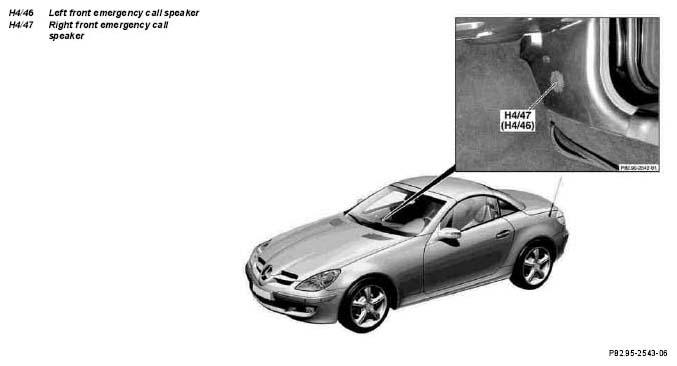

Fig 1: Identifying Emergency Call System Loudspeaker Location
G05030629Courtesy of MERCEDES-BENZ USA
Emergency call system loudspeaker, location The left front emergency call speaker (H4/46) is located in the A-pillar side paneling in the lower driver's side footwell. The right front emergency call speaker (H4/47) is located in the A-pillar side paneling in the lower front passenger side footwell.
Emergency call system loudspeaker task The left front emergency call speaker (H4/46) and the right front emergency call speaker (H4/47) are used for voice output in the event of a Telematic Alarm Identification on Demand (emergency call system) (TELE AID) call (emergency call, telediagnosis, MB information).
