Destination guidance, function with code 525 and 527 - GF82.61-P-3012SK

MODEL 171.4 with CODE (525) MB Audio 50 APS radio

MODEL 171.4 with CODE (527) COMAND APS with single DVD drive (with navigation)

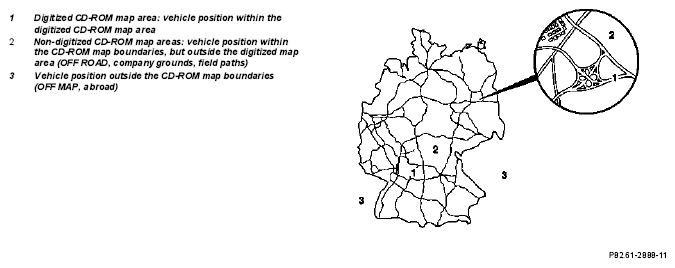

Overview of digitized and non-digitized CD-ROM map areas

Fig 1: Destination Guidance Function Chart

Courtesy of MERCEDES-BENZ USA

The navigation processor of the radio and navigation unit (A2/56) with code (525) Audio 50 APS MB radio is integrated into the control unit. On the COMAND operating, display and control module (A40/3) with code (527a) COMAND APS (with navigation) the external navigation module is called navigation processor (N41/1).

Destination guidance, function

Destination guidance includes making up and outputting driving recommendations to guide the driver to the desired destination. The prerequisites of destination guidance include:

• Continuous position finding is in operation.
• The trip destination has been entered.
• Route has been calculated.

The navigation processor (N41/1) continuously compares the route calculation data with the position finding data and derives from this the measures for continued navigation.

Depending on the position of the vehicle, a distinction can be made between the following two destination guidance system modes:

• Navigation within digitized DVD-ROM map area
• Restricted navigation outside the digitized DVD map area
