CD player with changer, location/task/design/function up to 31.5.05 with code 819 - GF82.64-P-3113SK

Model 171.4 up to 31.5.05 with CODE (819) 6-disk CD changer

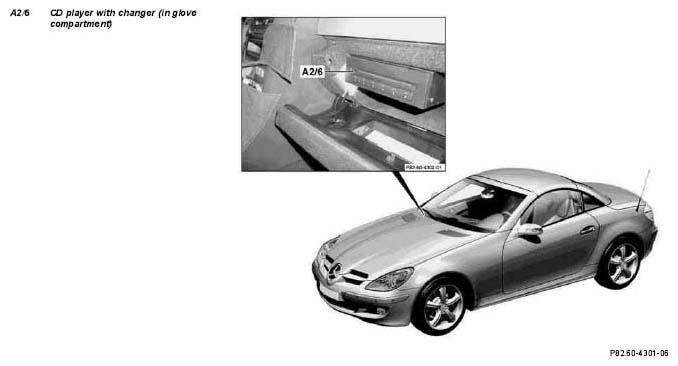

Fig 1: Identifying CD Player With Changer Location

Courtesy of MERCEDES-BENZ USA

CD player with changer, location	The CD player with changer (in glove compartment) (A2/6) is located in the glove compartment on the passenger side.
CD player with changer, purpose	Playing audio CDs Transmitting audio signals in stereo, Dolby surround Storage of a maximum of 6 CDs in a central insertion slot
CD player with changer, design	Central insertion slot for 6 CDs 6 selection buttons Wake-up line input Own fault memory
CD player with changer, function	The CD player with changer (in glove compartment) (A2/6) is actuated via the media-oriented system transport (MOST) and an electric wake-up lead and is operated by the corresponding control unit.
