Remove/install wiper motor - AR82.30-P-6800V: Notes
MODELS 171.4
| Remove | |||
|---|---|---|---|
| 1 | Remove wiper system | AR82.30-P-6400V | |

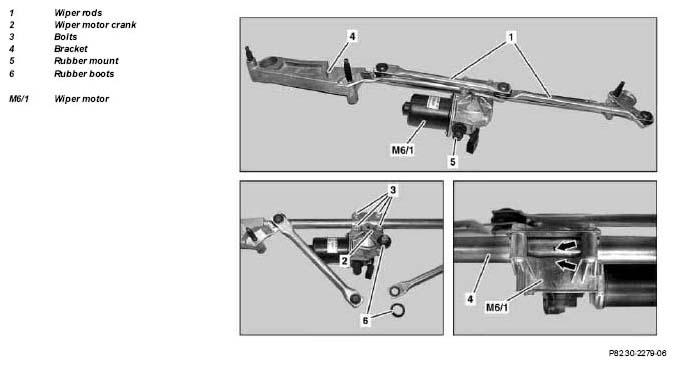

| 2 | Unclip the wiper rods (1) from the wiper motor crank (2) | ||
| 3 | Rotate the wiper motor crank (2) (M6/1) to the right (clockwise) until all the screws (3) are accessible | ||
| 4 | Unscrew bolts (3) | ||
| 5 | Remove the wiper motor (M6/1) from the bracket (4) | ||
| Install | |||
| 6.1 | Install new rubber mounts (5) | When replacing the wiper motor (M6/1) | |
| 7 | Position the wiper motor (M6/1) on the bracket (4) so that the markings (arrows) on the bracket (4) and the wiper motor (M6/1) are in alignment | ||
| 8.1 | Rotate the wiper motor crank (2) (M6/1) to the right until all the screws (3) can be inserted in the holes in the wiper motor housing | When replacing the wiper motor (M6/1) | |
| 9 | Tighten screws (3) | *BA82.30-P-1001-01A | |
| 10 | Move wiper motor to parking position | AR82.30-P-6800-01V | |
| 11 | Press the wiper rods (1) onto the wiper motor crank (2) | Be sure to note the correct installation position. The wiper rods (1) must be in alignment. |
|
| 12 | Install wiper system | AR82.30-P-6400V |
WINDSHIELD WIPER
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA82.30-P-1001-01A | Bolt on wiper motor mount | Nm | 11 |
