Remove/install telephone antenna - AR82.62-P-0011V
MODEL 171.4 with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system
Bluetooth antenna in vehicle interior
| Remove/install | |
|---|---|
| Information on preventing damage to electronic components due to electrostatic discharge | |

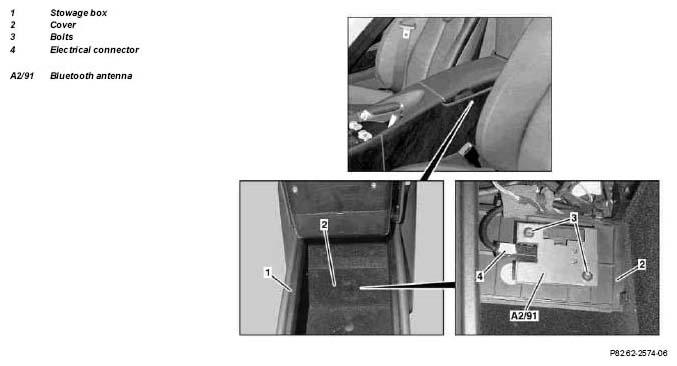

| 1 | Open stowage box (1) |
| 2 | Unclip cover (2) using suitable screwdriver and put down |
| 3 | Remove bolts (3) |
| 4 | Disconnect electrical connector (4) and remove Bluetooth antenna (A2/91) |
| 5 | Install in the reverse order |
