Remove/install luggage compartment lamp - AR82.20-P-0111V

MODELS 171.4

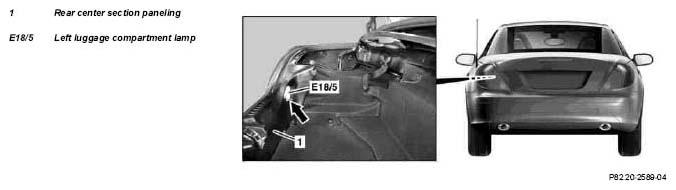

Fig 1: Identifying Luggage Compartment Lamp Components

Courtesy of MERCEDES-BENZ USA

	Removal/installation
1	Open retractable trunk partition	See Operating Instructions
2	Unclip bottom (arrow) of left luggage compartment lamp (E18/5) from rear end center assembly (1) paneling with suitable screwdriver	Installation:  Ensure that left luggage compartment lamp (E18/5) is correctly seated in the rear end center assembly (1) paneling.
3	Disconnect electrical connector from left luggage compartment lamp (E18/5) and remove left luggage compartment lamp (E18/5) from luggage compartment
4	Install in the reverse sequence
5	Perform function check of left luggage compartment lamp (E18/5)
