Remove/install compensator control unit - AR82.70-P-0030V
MODEL 171.4 with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
|---|---|---|---|
| Risk of fire and explosion caused by machining/treating magnesium components | Keep away from ignition sources and open flames. | ||

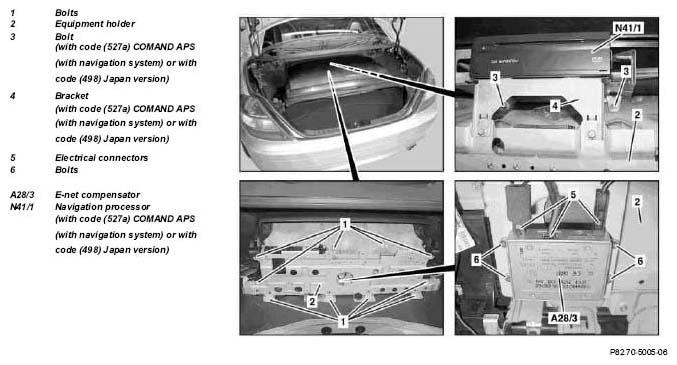

| 1 | Remove bottom center trunk paneling | AR68.30-P-4810V | |
| 2.1 | Remove bolts (3) from bracket (4) of navigation processor (N41/1) | In vehicles with code (527a) COMAND APS (with navigation system) or code (498) Japanese version | |
| *WE58.40-Z-1008-03A | |||
| *BA54.21-P-1005-01A | |||
| 3 | Remove bolts (1) | ||
| *WE58.40-Z-1008-03A | |||
| *BA54.21-P-1005-01A | |||
| 4 | Move beverage holder (2) toward rear | ||
| 5 | Disconnect electrical connectors (5) | ||
| 6 | Remove bolts (6) and remove E-net compensator (A28/3) from equipment carrier (2) | ||
| 7 | Install in the reverse order |
CONTROL UNITS
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA54.21-P-1005-01A | Bolt, equipment carrier to body, retractable partition bracket and tank partition wall | Nm | 10 |
WORKSHOP EQUIPMENT/MB TESTERS (SEE WORKSHOP EQUIPMENT MANUAL)
| WE58.40-Z-1008-03A | Cordless drill/driver |
