Adjusting Headlights
Adjusting Headlights

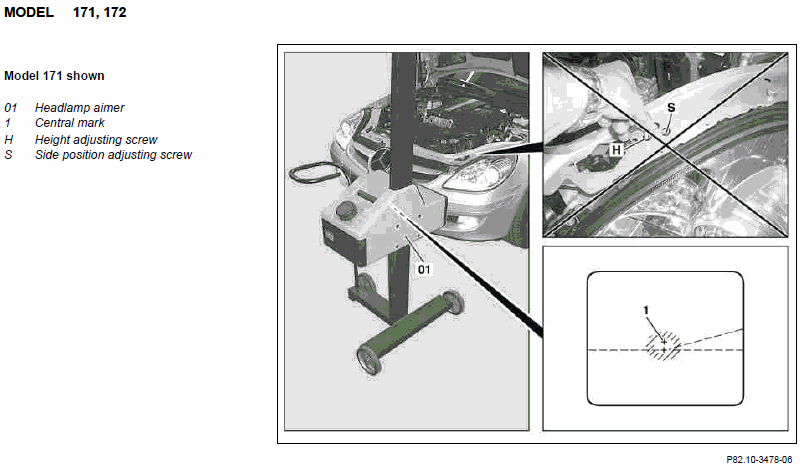

Fig 1: Adjusting Headlights (Low Beam)
Courtesy of MERCEDES-BENZ USA

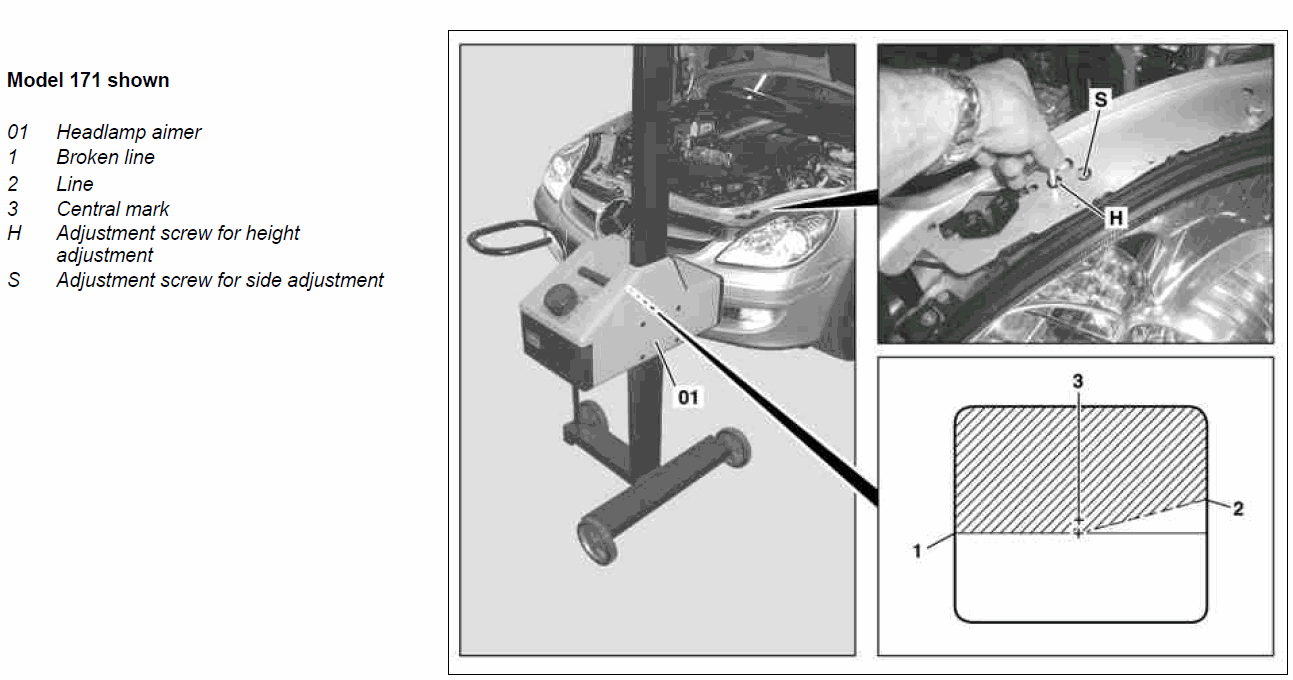

Fig 2: Adjusting Headlights (High Beam)
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
