Windshield washer fluid pump, component description - GF82.35-P-5000RC
MODEL 171.4 as of model year 09/YoM 08 model refinement package
M5/1 Windshield washer fluid pump

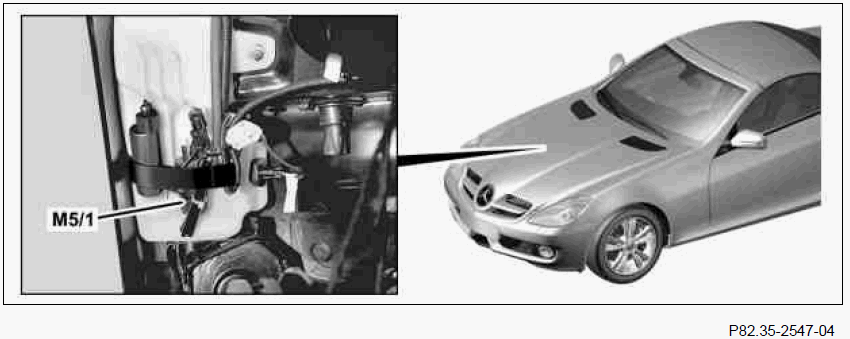

Location The windshield washer fluid pump is located at the washer fluid reservoir in the right front wheel well.
Task The window washer fluid pump delivers window washer fluid to the spray nozzles of the windshield upon request of the driverside SAM control unit with fuse and relay module (N10/1).
