Voice control system (VCS [SBS]) switch, component description - GF82.70-P-4301RC
MODEL 171 with CODE (511) Audio 50 APS with DVD changer
MODEL 171 with CODE (527) COMAND APS with single DVD drive (with navigation)
MODEL 171 with CODE (512) COMAND APS with DVD changer
MODEL 171 as of model year 09/YoM 08 model refinement package

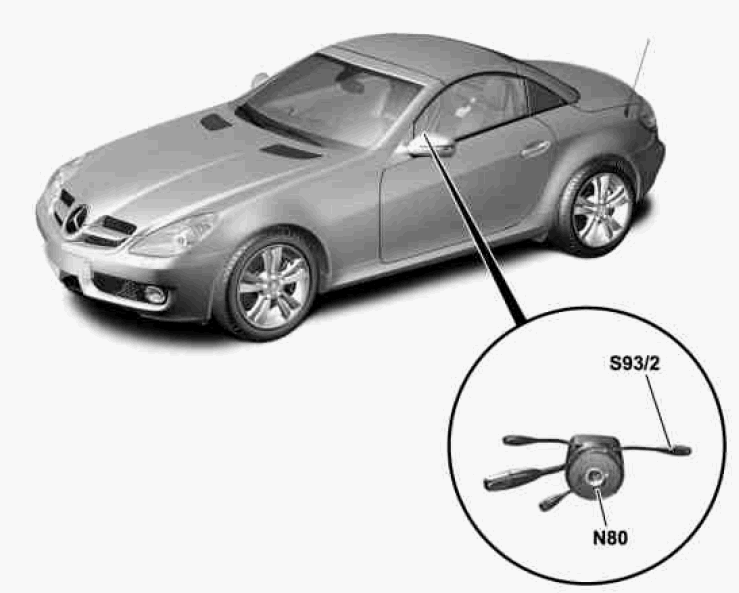

N80 Steering column module
S93/2 VCS switch
Location The VCS [SBS] switch is located on the right of the steering column tube module.
Task Receiving signals; Transmitting signals.
Receiving signals Direct line - Power supply from the steering column tube module via a direct line
Transmitting signals Direct line - Switch-on signal from the voice control of the voice control system (VCS [SBS]) to the steering column tube module via a direct line - Switch-off signal from the voice control of the VCS [SBS] to the steering column tube module via a direct line
