Trunk lamp, component description - GF82.20-P-5020RC
MODEL 171.4 as of model year 09/YoM 08 model refinement package

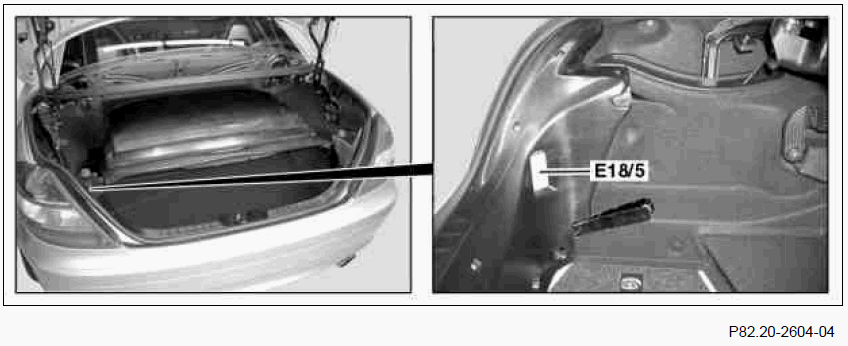

E18/5 Left luggage compartment lamp
Location The trunk lamp is clipped into the left of the rear center section panel.
Task The trunk lamp is used to illuminate the trunk when loading and unloading. The trunk lamp is actuated by the rear SAM control unit with fuse and relay module (N10/2).
