Sun visor mirror lamp, component description - GF82.20-P-5070RC
MODEL 171.4 as of model year 09/YoM 08 model refinement package

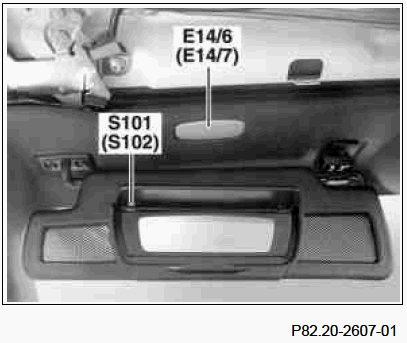

E14/6 Left front vanity mirror illumination
E14/7 Right front vanity mirror illumination
S101 Left front vanity mirror illumination switch
S102 Right front vanity mirror illumination switch
Location A vanity mirror illumination each is located above the sun visors in the front roof frame trim.
Task The vanity mirror illumination is used to illuminate the face area, when the vanity mirrors integrated into the sun visors are used.
Design The hinges for the vanity mirror covers contain the vanity mirror illumination switches.
When the corresponding vanity mirror cover is opened, voltage is switched through to the relevant vanity mirror illumination. The power supply for the vanity mirror illumination switches and thus the vanity mirror illumination is provided by the overhead control panel control unit (N70).
