Stowage compartment illumination between backrests, component description - GF82.20-P-5090RCA
MODEL 171.4 as of model year 09 /YoM 08 model refinement package with CODE (876) Interior lights package stowage compartment between backrests

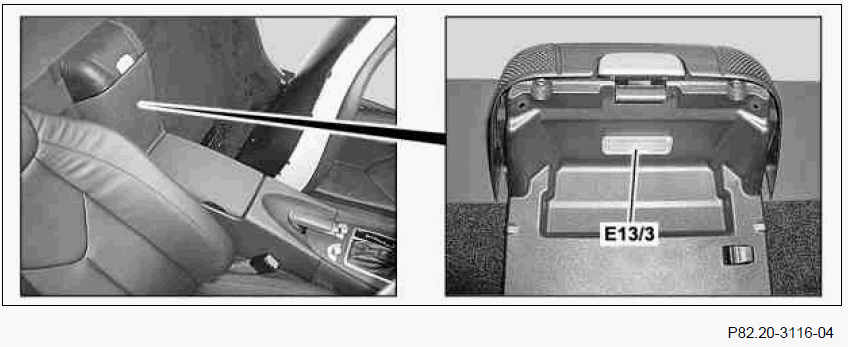

E13/3 Stowage compartment illumination between backrests
Location The stowage compartment illumination is located on the inside on the upper area of the stowage compartment between the backrests.
Task The stowage compartment illumination is used to illuminate the stowage compartment between the backrests. The stowage compartment illumination is supplied with voltage by the driver SAM control unit with fuse and relay module (N10/1) via the circuit 15R connector sleeve (Z3/12).
