Media interface electrical connector, component description - GF82.60-P-5001RC
MODEL 171 with CODE (518) Media interface
MODEL 171 as of model year 09/YoM 08 model refinement package

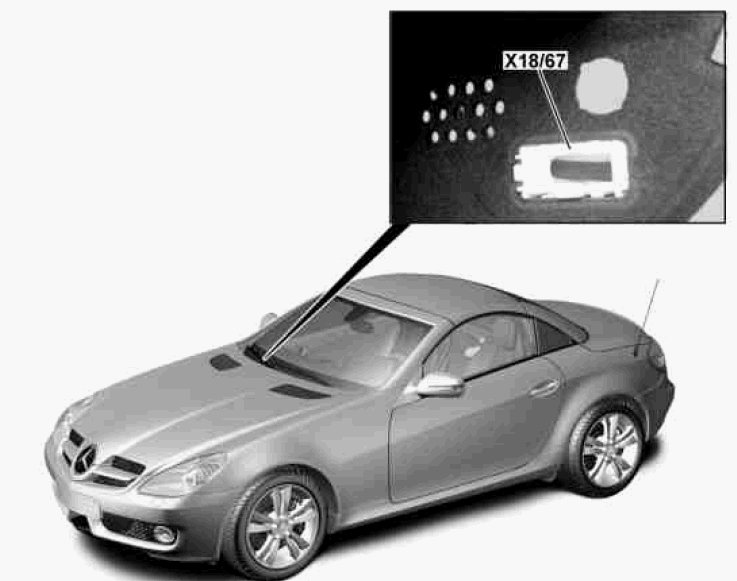

Location The media interface connector is connected in the glove box.
The AUX jack usually installed in the glove box has been eliminated.
Depending on the equipment version, one of the following audio devices is installed (hereinafter called "Audio equipment"): Radio (A2), with code (510) Audio 20 with CD changer, with code (523) MB Audio 20 radio - Radio and navigation unit (A2/56), with code (525) MB Audio 50 APS radio or with code (511) Audio 50 APS with DVD changer - COMAND operating, display and controller unit (A40/3), with code (528) COMAND with DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS with DVD changer.
Task Relaying signals - Power supply from media interface control unit (N125/1) for specific portable devices connected over media interface adapter cable - Audio signals and data from the specific portable devices connected to the media interface control unit over the media interface adapter cable - Video signals and data from the specific portable devices connected to the "Audio equipment" over the media interface adapter cable and a direct line - Control signals from the media interface control unit or for the specific portable devices connected over the media interface adapter cable.
