Media interface adapter cable, component description - GF82.60-P-5002RC
MODEL 171 with CODE (518) Media interface
MODEL 171 as of model year 09/Modification Year 08 model refinement package

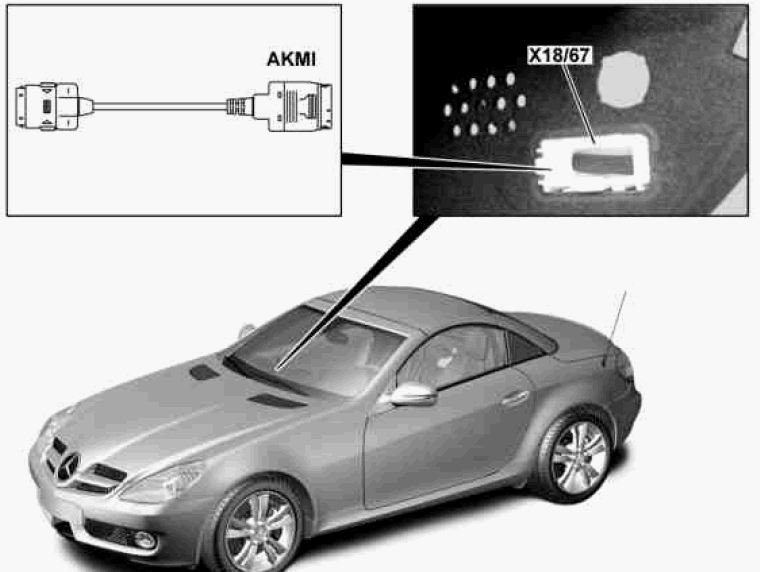

AKMI Media interface adapter cable
X18/67 Media interface connector 1
Location The adapter cable is connected by the user to the media interface connector 1 and is thereby also located in the glove box.
Task Relaying signals - Power supply from media interface connector 1 for the specific portable devices connected and for USB - Audio signals and data or video signals and data from the specific portable devices connected to media interface connector 1 - Control signal from media interface connector 1 for the specific portable devices connected.
