HCS pump, component description With code (600) Headlamp cleaning system- GF82.15-P-2161RC
MODEL 171.4 as of Model Year 09 /YoM 08 model refinement package with CODE (600) Headlamp cleaning system

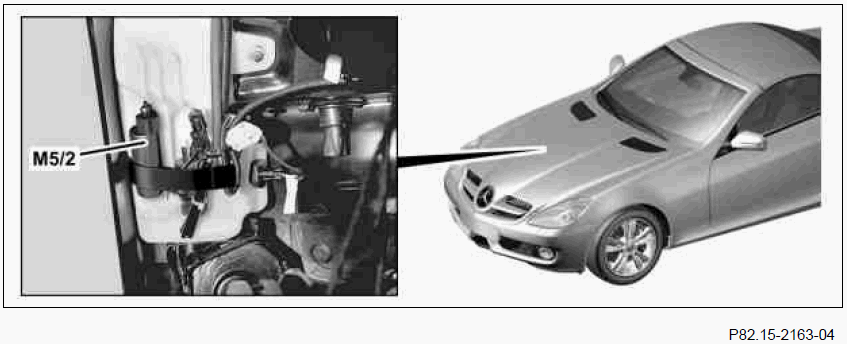

M5/2 HCS [SRA] pump
Location The HCS pump is located at the washer fluid reservoir in the right front wheelhouse.
Task The HCS [SRA] pump delivers window washer fluid to the telescopic nozzles of the headlamp cleaning system (HCS [SRA]) when requested by the driver SAM control unit with fuse and relay module (N10/1).
