Footwell lamp, component description - GF82.20-P-5000RC
MODEL 171.4 as of Model Year 09 /YoM 08 model refinement package with CODE (876) Interior lights package
E17/15 Right front footwell lamp
E17/16 Left front footwell lamp

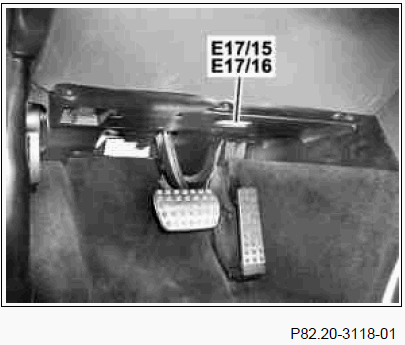

Location One footwell lamp each is located on the left and right cover under the instrument panel.
Task The footwell lamps are used to illuminate the footwell area in darkness. The footwell lamps are actuated by the driver SAM control unit with fuse and relay module (N10/1).
