Exit and warning lamp, component description - GF82.20-P-5060RC
MODEL 171.4 as of model year 09/YoM 08 model refinement package

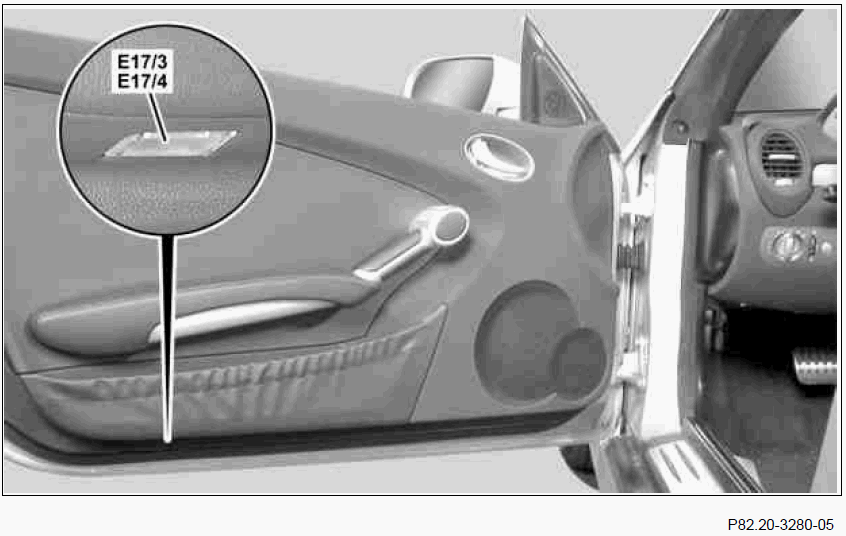

E17/3 Left door entrance/exit lamp
E17/4 Right door entrance/exit lamp
Location An entrance/exit lamp each is clipped into the bottom of the door trim in the corresponding door.
Task The entrance/exit lamps are actuated when the corresponding door is opened. The entrance/exit lamps illuminate the area below each vehicle door. The left door entrance/exit lamp is actuated by the left door control unit (N69/1) and the right door entrance/exit lamp by the right door control unit (N69/2).
