Cigarette lighter with ashtray illumination, component description - GF82.20-P-5080RC
MODEL 171.4 as of model year 09/YoM 08 model refinement package with CODE (301) Ashtray package/smoker package

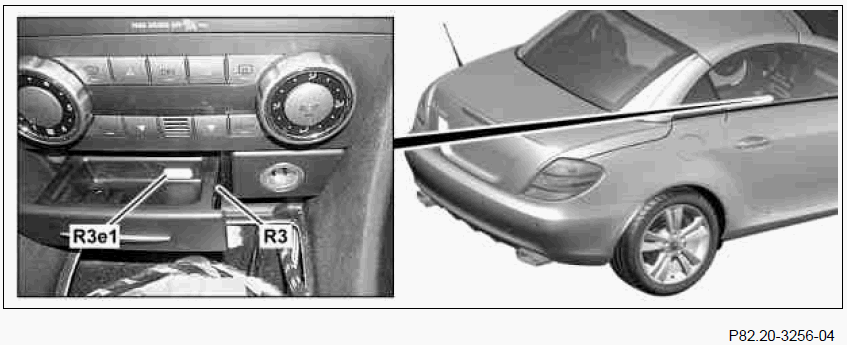

R3 Cigar lighter with ashtray illumination
R3e1 Lighting
Location The cigar lighter with ashtray illumination is located in the front of the center console.
Task The cigar lighter is used to light cigarettes, the illumination enables the ashtray to be located in the dark. The power supply for the cigar lighter and the actuation of the illumination are provided by the front SAM control unit with fuse and relay module (N10/1).
