Telescopic nozzle for headlamp cleaning system, location/task/design/ function - GF82.15-P-2100SK: Notes
MODEL 171.4 with CODE (600a) Headlamp cleaning system

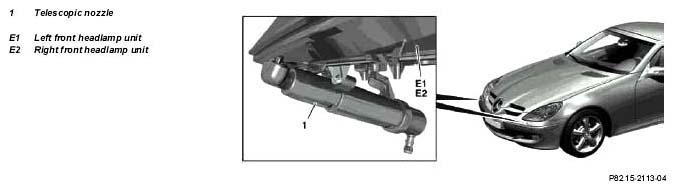

| Headlamp cleaning system telescopic nozzle, location | The telescopic nozzle (1) is in the center beneath the left front lamp unit (E1) and the right front lamp unit (E2). | |
| Telescopic nozzle for headlamp cleaning system, task | Cleaning the glass of the left front lamp unit (E1) and the right front lamp unit (E2). | |
| Telescopic nozzle for headlamp cleaning system, design | The telescopic nozzle (1) is a hydraulically extendable telescope with an integrated return spring. It does not have any electrical connection. | |
| Function of headlamp cleaning system telescopic nozzles | GF82.15-P-2100-04SK |
