TELE AID control unit, location/task/design/function - GF82.95-P-4100SKU: Notes

MODEL 171.4 with CODE (359) TELE AID emergency call system

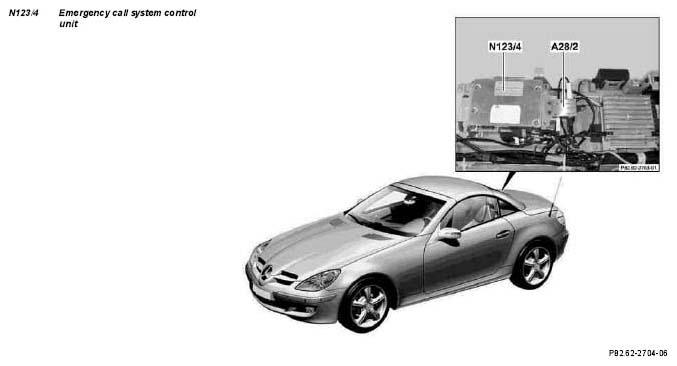

Fig 1: Identifying TELE AID Control Unit Location
G05030625Courtesy of MERCEDES-BENZ USA
TELE AID control unit, location The emergency call system control unit (N123/4) is located on the equipment bridge in the trunk
TELE AID control unit, task   GF82.95-P-4100-02SKU
TELE AID control unit, design
  • Integrated telephone module
  • Integrated navigation module
  • Integrated additional battery
  • Memory for vehicle-specific data
  • Screened metal housing

TELE AID control unit, function   GF82.95-P-4100-04SKU
