Standing light actuation, function - GF82.10-P-3000SK
MODEL 171.4
Function requirements:
- Circuit 30 ON
- Exterior lamp switch (S1) in position "standing lamps ON"
Function sequence

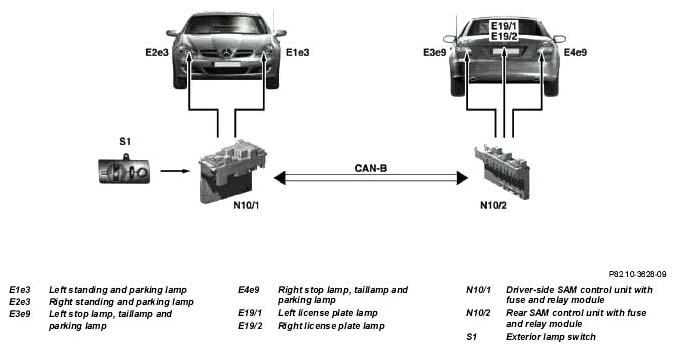

The actuation of the exterior lamp switch (S1) to position "standing lamps ON" is read in by the driver-side SAM control unit with fuse and relay module driver (N10/1) via a discrete line. The driver-side SAM control unit with fuse and relay module driver (N10/1) transmits the "standing lamps ON" message to the rear SAM control unit with fuse and relay module (N10/2) via the Controller Area Network Bus Class B (interior) (CAN-B). The driver-side SAM control unit with fuse and relay module driver (N10/1) actuates the following lamps via discrete wiring:
- Left standing and parking lamp (E1e3)
- Right standing and parking lamp (E2e3)
The rear SAM control unit with fuse and relay module (N10/2) actuates the following lamps via discrete wiring:
- Left stop lamp, taillamp and parking lamp (E3e9)
- Right stop lamp, taillamp and parking lamp (E4e9)
- Left license plate lamp (E19/1)
- Right license plate lamp (E19/2)
With "circuit 15C OFF" and driver door status "OPEN," a warning buzzer (A1h1), which is integrated in the instrument cluster (A1), is activated additionally and the corresponding warning message is issued in the upper multifunction display (A1p13) of the instrument cluster (A1).
