SOS switch, location/task/design/function - GF82.95-P-4107SK: Notes
MODEL 171.4 with CODE (359) TELE AID emergency call system
Courtesy of MERCEDES-BENZ USA
| SOS switch, location |

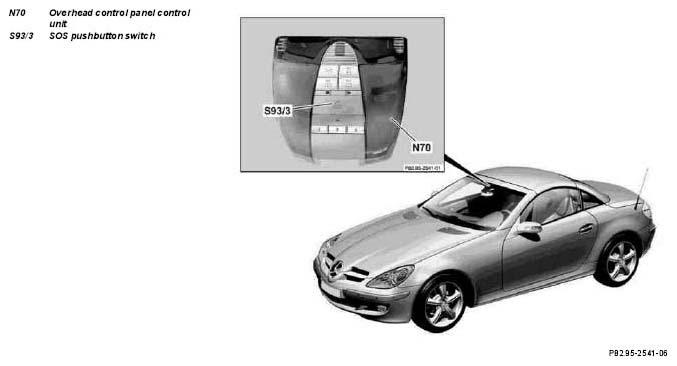

The SOS pushbutton switch (S93/3s1) is integrated in the overhead control panel control unit (N70). |
|
| SOS switch, task |
- To trigger a manual Telematic Alarm Identification on Demand (emergency call system) (TELE AID) emergency call
- Visual feedback signal of the TELE AID operating conditions
|
|
| SOS switch, design |
- Integrated light-emitting diodes (LED's) for night illumination (circuit 58d) and as an operating status indicator
- Cap for protecting against unintentional actuation
- Control resistor connected in parallel to switch contact
|
|
| SOS switch, function |
|
GF82.95-P-4107-04SK |
