Rotary light switch module, location/task/design (except code 614) - GF82.10-P-4104SK: Notes

MODEL 171.4 except CODE (614) Bi-xenon headlamp unit

Shown on vehicle up to 31.5.07

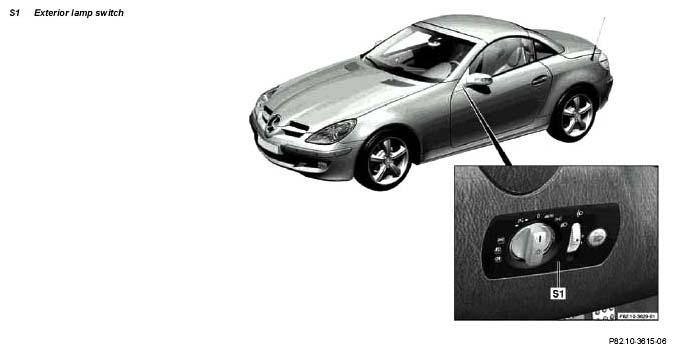

Fig 1: Identifying Rotary Light Switch Module Location - Shown On Vehicle Up To 31.5.07
G05030530Courtesy of MERCEDES-BENZ USA
Rotary light switch, location The rotary light switch (S1) is located in the left front of the instrument panel.
Rotary light switch, task   GF82.10-P-4104-01SK
Rotary light switch, design In addition to the rotary switch, the rotary light switch (S1) also contains the following controls:
  • Headlamp range adjustment selector a wheel
  • HCS [SRA] switch (with code (600) a Headlamp cleaning system up to 31.5.07)
