Radio control panel, location/task/design/function with CODE (494) USA version - GF82.60-P-3115SKV: Notes

MODEL 171.4 with CODE (494) USA version

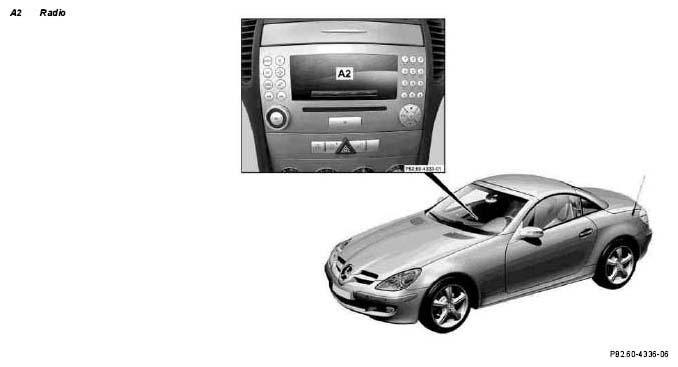

Fig 1: Identifying Radio Control Panel Location
G05030573Courtesy of MERCEDES-BENZ USA
Radio control panel, location The radio (A2) is installed in the 2-DIN recess of the center console.
Radio control panel, task   GF82.60-P-3115-02SKV
Radio control panel, design
  • Radio control panel
  • Display
  • CD disk drive
  • Control electronics
  • AUX jack (in glove compartment)

Radio control panel, function   GF82.60-P-3115-04SKV
