Radio and navigation unit, location/task/design/function - GF82.61-P-4109SK: Notes

MODEL 171.4 with CODE (525) MB Audio 50 APS radio

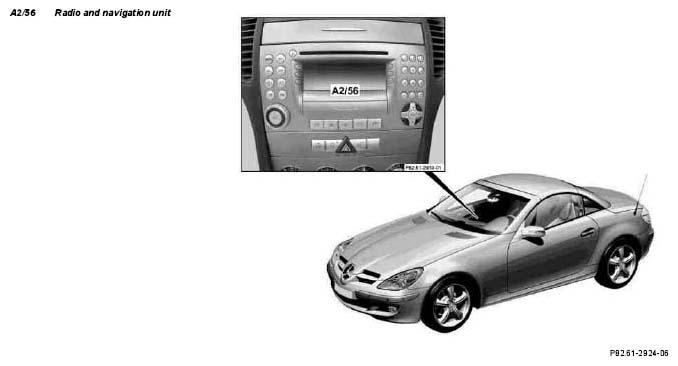

Fig 1: Identifying Radio And Navigation Unit Location
G05030589Courtesy of MERCEDES-BENZ USA
Radio and navigation unit, location The radio and navigation unit (A2/56) is located in the center console in the 2-DIN shaft
Radio and navigation unit, task Central control of the following systems:
  • Radio
  • Sound system
  • CD disk drive
  • CC drive
  • Telecommunications
  • Navigation

Radio/navigation unit, design
  • Radio control panel
  • CD disk drive
  • Central computer
  • Navigation processor
  • AUX jack (in glove compartment)
  • Media-oriented system transport (MOST) subscribers

Radio and navigation unit, function   GF82.61-P-4109-04SK
