Position lamp control, function - GF82.10-P-3001SK
MODEL 171.4
Function requirements:
- Circuit 30 ON
- Exterior lamp switch (S1) in position "left parking lamps ON" or "right parking lamps ON"

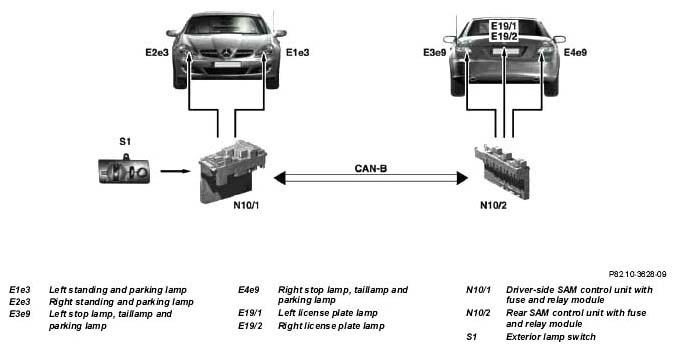

The driver-side SAM control unit with fuse and relay module (N10/1) reads in the position of the exterior lamp switch (S1) via discrete wiring and transmits the corresponding message left parking lamps ON or right parking lamps ON to the rear SAM control unit with fuse and relay module (N10/2) via Controller Area Network Bus Class B (interior) (CAN-B). All lamps are actuated by the appropriate control unit via discrete wiring.
Left parking lamp ON
The driver-side SAM control unit with fuse and relay module (N10/1) actuates the left standing and parking lamp (E1e3) in the left front lamp unit (E1) and simultaneously transmits the "left parking lamp ON" message via CAN-B. The rear SAM control unit with fuse and relay module (N10/2) actuates the left stop lamp, taillamp and parking lamp (E3e9).
Right parking light ON
The driver-side SAM control unit with fuse and relay module (N10/1) actuates the left standing and parking lamp (E2e3) in the right front lamp unit (E2) and simultaneously transmits the "right parking lamp ON" message via CAN-B. The rear SAM control unit with fuse and relay module (N10/2) actuates the right stop lamp, taillamp and parking lamp (E4e9).
| Exterior lamp switch module, location/ function/design | Except code (614) Bi-xenon headlamp unit | GF82.10-P-4104SK |
| With code (614) Bi-xenon headlamp unit | GF82.10-P-4104SKX | |
| Lamp unit, location/task | GF82.10-P-4010SK | |
| Taillamp, location/task | GF82.10-P-4020SK |
