Navigation processor, location/task/design/function - GF82.85-P-3103SK: Notes

Model 171.4 with CODE (527) COMAND APS with single DVD drive (with navigation)

Model 171.4 with CODE (530) COMAND APS USA (with navigation system)

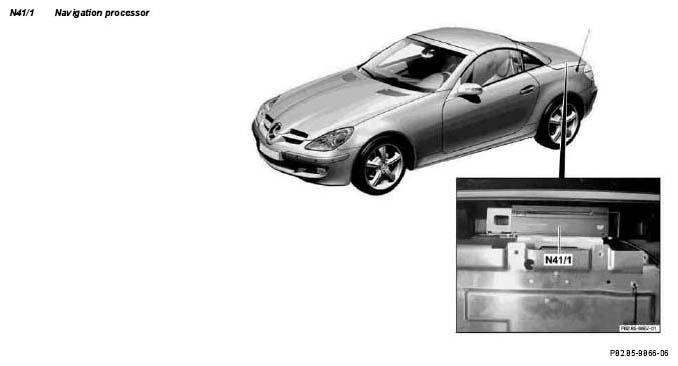

Fig 1: Identifying Navigation Processor Location

Courtesy of MERCEDES-BENZ USA

Navigation processor, location	The navigation processor (N41/1) is installed in the trunk on the left
Navigation processor, task	The navigation processor (N41/1) is responsible for provision of navigation data in the vehicle
Navigation processor, design	Global positioning system (GPS) receiver Central computer DVD drive and control electronic control circuitry Integrated yaw rate sensor Media Oriented System Transport (MOST) interface
Navigation processor, function		GF82.85-P-3103-07SK
