Luggage compartment lamp, location/task/function - GF82.20-P-4003SK

MODEL 171.4

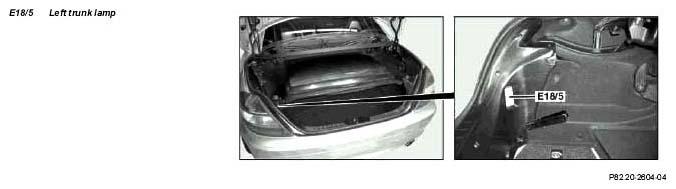

Fig 1: Identifying Luggage Compartment Lamp Location
G05030537Courtesy of MERCEDES-BENZ USA
Luggage compartment lamp, location The left luggage compartment lamp (E18/5) is located on the inside of the trunk sill to the left.
Luggage compartment lamp, task The left luggage compartment lamp (E18/5) illuminates the luggage compartment and the immediately surrounding area.
Luggage compartment lamp, function The left luggage compartment lamp (E18/5) is switched on via the rotary tumbler/trunk lid microswitch (S88/1).
