Destination guidance, function with code 530 - GF82.61-P-3012SKU
MODEL 171.4 with CODE (530) COMAND APS USA (with navigation system)

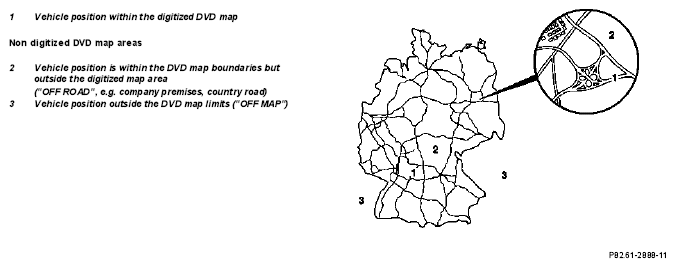

Digitalized Digital Versatile Disk (DVD) map area
Non digitized DVD map areas
Navigation includes creating and outputting driving recommendations to guide the driver to the desired destination. The prerequisites of destination guidance include:
- Continuous position finding in operation (takes place automatically).
- Destination was entered
- Route has been calculated.
The navigation processor (N41/1) compares the route calculation data with the continuous position finding data and derives from this the measures for continued navigation.
Depending on the position of the vehicle, a distinction can be made between the following two navigating modes:
- Destination within digitized DVD map area
- Restricted navigation outside the digitalized DVD map area
| Destination guidance in digitalized map area, function | GF82.61-P-4000SKU |
| Destination guidance in non-digitalized map area, function | GF82.61-P-4001SKU |
